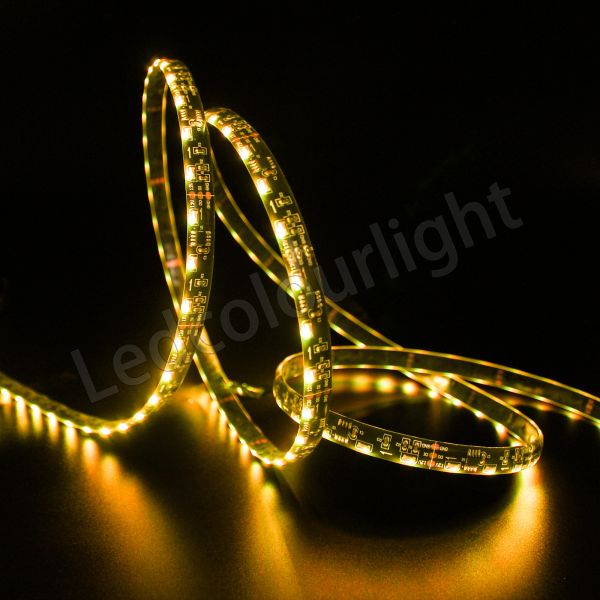

IP65 Waterproof Addressable DC12V WS2811 Side Emitting RGB LED Strip Light
WS2811 control | RGB full color | 60 LEDs/M | 20 Pixels/M | DC12V | IP65
Production Specification
• Side-emitting 020 LED design, providing soft and uniform ambient lighting
• 60 LEDs/20 programmable pixels per meter, using WS2811 chip for independent single-point control
• 10mm wide PCB, optional black/white circuit board base
• Cuttable every 50mm, flexible roll length: standard 5m, custom 1m / 2m rolls supported
• DC12V safe low voltage input, low power consumption & long service lifespan
• IP65 drip glue + sleeve waterproof grade, dustproof and splash-proof
• Pre-installed 3M strong adhesive backing, no extra brackets required for quick mounting
• Ultra-flexible strip body, easy to bend around corners and irregular outlines
• Full RGB color adjustable, compatible with common WS2811 signal controllers
|
Model
|
LCL-WS2811-RGB-Side-emitting
|
|
Size
|
5000*10mm
|
|
LED Light Source
|
SMD RGB 020
|
|
LED QTY
|
60 PCS/M
|
|
LED Pixels
|
20 Pixels/M
|
|
Emitting
|
Side emitting
|
|
Power
|
14.4 W/M
|
|
Input Voltage
|
DC12V
|
|
Control
|
WS2811
|
|
Address Setting
|
Auto Address
|
|
Operating Temperature
|
-20-50ºC
|
|
Storage Temperature
|
-40-80°c
|
|
IP
|
IP65
|
- White / Black PCB.
- RGB full color.
- Front illumination version.
- Extra accessory to fix it well.

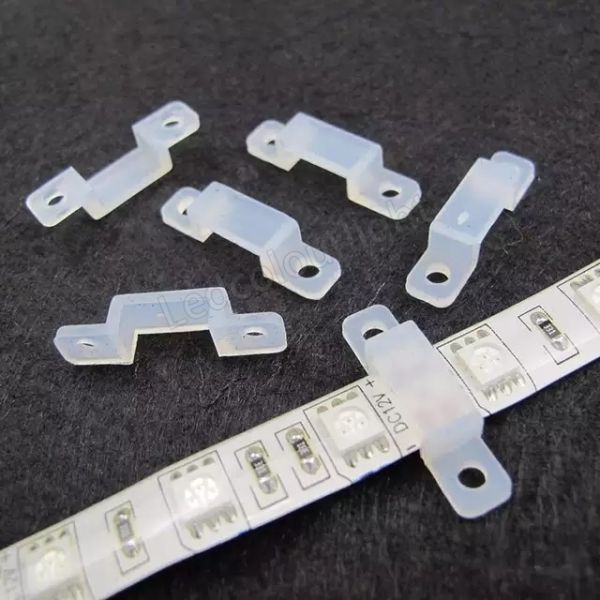

Silicone brackets are helpful to fix the LED strip lights, and can be easily taken down from the other end when replacing.

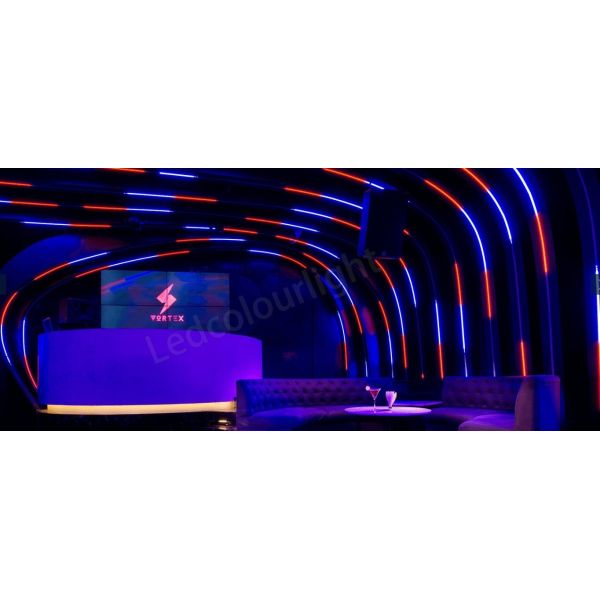

Application
Indoor atmosphere decoration: cabinet lighting, wine cabinet, TV background wall, ceiling cove, stair handrail, showcase display
Commercial project decoration: mall window display, hotel lobby, KTV, bar, café, amusement park
Event & stage props: wedding backdrop, live show, party decorative lighting

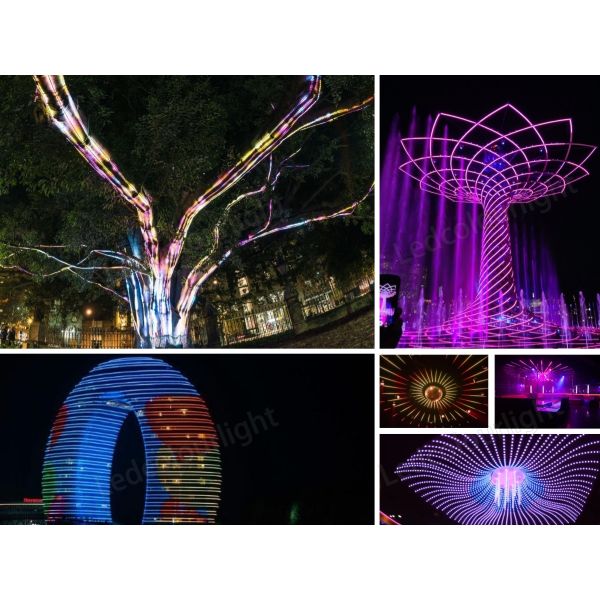

Mild outdoor usage: park outline, courtyard landscape, building edge lighting (avoid long-term soaking)

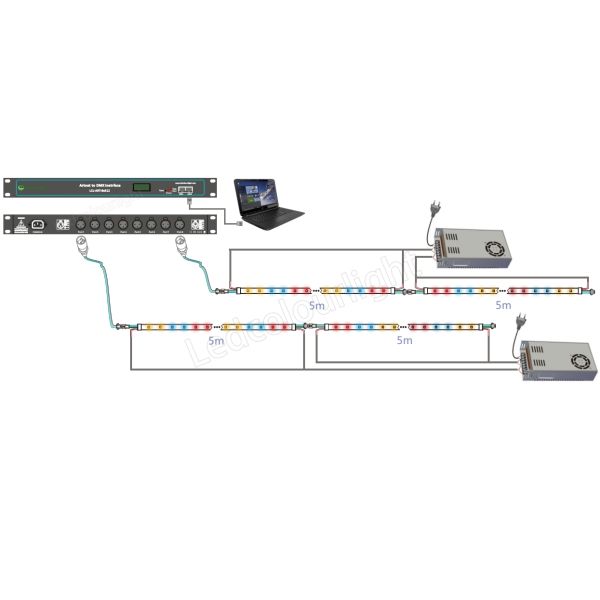

Connection Diagram
Package
FAQ
1. Q: Are you a factory or a trading company?
A: We are a factory as a manufacturer.
2. Q: How can I get some samples? Delivery time for samples?
A: If samples are in stock, they can be sent out right away. If no samples are in stock, take 1-3 business days for production.
3. Q: MOQ?
A: At least 2 pieces per model.
4. Q: OEM and ODM available?
A: Yes.
5. Q: Can this side-emitting strip be cut?
A: Yes. The strip can be safely cut every 50mm along the marked cutting line; each segment works independently after cutting. We can provide matching connectors for reconnection.
6. Q: What’s the difference between the black PCB and the white PCB version?
A: White PCB reflects more light for brighter output, perfect for bright decorative scenes; black PCB reduces light reflection to create deeper, richer color effects, widely used for dark background atmosphere lighting.
7. Q: Warranty?
A: All products we sell are of good quality and have been tested before they are shipped out. We offer a 2-year Warranty.
8. Q: What if I have never bought any product from China?
A: We will guide you step by step; any potential costs will be listed, and we will provide all the information if needed.
